BGAN

Our BGAN service provides simultaneous voice and broadband data communications globally from small and lightweight satellite terminals

Connect your BGAN terminal to a portable PC or smart device using Standard IP to access the internet for applications such as web browsing and email, or choose from a range of guaranteed Streaming IP rates to meet all your data, voice and video needs.

BGAN is accessible via a range of small, lightweight satellite terminals, which provide performance options to suit different operational needs.

The smallest terminals are designed to suit single users. The larger terminals offer a WLAN capability and are particularly suitable for small teams that need to establish a temporary office for an extended period. They are also suitable for users requiring higher bandwidth to enable applications such as live broadcasting

Terminals

BGAN Portable

  • AddValue Wideye Sabre 1
  • Thrane & Thrane Explorer 700
  • Thrane & Thrane Explorer 500
  • Thrane & Thrane Explorer 300
  • Hughes 9201

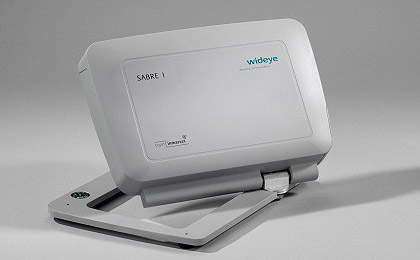

Delivers the combination of highly portable, robust design together with all-round performance. Gives the single-user a cost-effective voice and high-speed data solution for remote access to corporate networks.

Manufacturer Addvalue Communications
Size Height : 25.9cm
Width : 19.5cm
Weight : 1.6kg
Standard IP Up to 240 / 384kbps (send & receive)
Streaming IP 32kbps or 64kbps (send & receive)
ISDN N/A
Voice Via RJ-11 or Bluetooth handset / headset
Data interfaces Bluetooth
Ethernet
Ingress protection IP 54

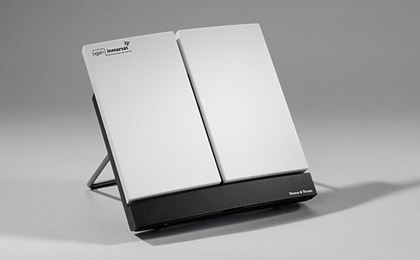

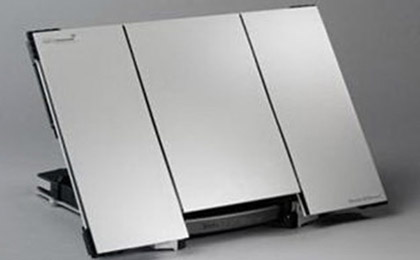

Combines optimal performance with extensive functionality in an extremely flexible and robust design. Provides access to the highest bandwidth available with the BGAN service, along with multiple voice and data interfaces.

Manufacturer Thrane & Thrane
Size Height : 29.7cm
Width : 39.9cm
Weight : 3.2kg
Standard IP Up to 492kbps (send & receive)
Streaming IP 32, 64, 128, 256kbps or BGAN X-Stream™ (send & receive)
ISDN 2 x 64kbps
Voice Via RJ-11 (x2) or Bluetooth handset, 3.1 kHz audio
Data interfaces USB
Bluetooth
Ethernet (x2)
WLAN 802.11g
Digital I/O
Ingress protection IP 52 (transceiver)
IP 66 (antenna)

A terminal to meet the needs of the most demanding business traveller for remote, high-speed corporate network access. The Thrane & Thrane Explorer 500 combines exceptional performance with portability.

Manufacturer Thrane & Thrane
Size Height : 21.7cm
Width : 21.7cm
Weight : <1.5kg
Standard IP Up to 448 / 464kbps (send & receive)
Streaming IP 32, 64 or 128kbps (send & receive)
ISDN Via USB
Voice Via RJ-11 or Bluetooth handset, 3.1 kHz audio
Data interfaces USB
Bluetooth
Ethernet
Ingress protection IP 54

Single unit incorporates transceiver and integral antenna in a compact, robust design. Combines performance with ultimate portability and is ideal for single users who need to set up a broadband mobile office in changing locations.

Manufacturer Thrane & Thrane
Size Height : 21.7cm
Width : 16.8cm
Weight : 1.4kg
Standard IP Up to 240 / 384kbps (send & receive)
Streaming IP 32 or 64kbps (send & receive)
ISDN N/A
Voice Via RJ-11 or Bluetooth
Data interfaces Bluetooth
Ethernet
Ingress protection IP 54

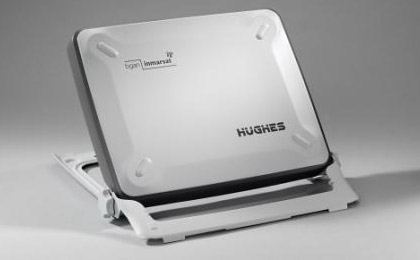

Combines ultimate performance with extremely rugged design, and provides access to the highest bandwidth available on the BGAN network. Ideal for bandwidth-hungry applications, such as live video, or for teams using standard office applications.

Manufacturer Hughes Network Systems
Size Height : 34.5cm
Width : 27.5cm
Weight : 2.8kg
Standard IP Up to 492kbps (send & receive)
Streaming IP 32, 64, 128, 256kbps or BGAN X-Stream™ (send & receive)
ISDN 1 x 64kbps
Voice Via RJ-45 ISDN handset, RJ-11
Data interfaces USB
Ethernet
WLAN 802.11b
Ingress protection IP 55

BGAN Vehicular

  • Hughes 9450
  • Hughes 9350
  • AddValue Safari
  • Glocom GX11
  • Glocom GX10
  • Thrane & Thrane Explorer 727
  • Thrane & Thrane Explorer 325

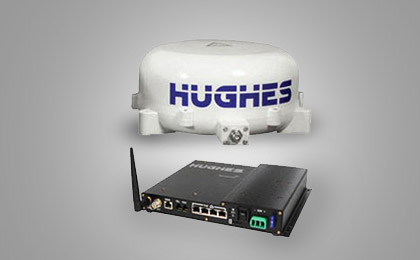

The world's smallest mobile BGAN terminal, the Hughes 9450 connects you to BGAN's Standard IP data service at rates up to 464 kbps while on-the-move. It has four Ethernet ports with Power over Ethernet (PoE), which allow the user to connect multiple devices. It also supports analog and ISDN circuit-switched voice calls, along with fax and 64kbps ISDN data. Ideal for government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.

Manufacturer Hughes Network Systems
Size

Terminal
Height : 23.4cm
Width : 28.1mm
Weight : 2.3kg

Antenna
Height : 25.2cm
Width : 11.9cm
Weight : 2kg

Standard IP Up to 448 / 464kbps (send & receive)
Streaming IP 32, 64, 128kbps (send & receive)
ISDN 64 / 56kbps*
Voice Via RJ-45 ISDN handset
Via ISDN TA with two RJ-11
Ports for voice or 3.1kHz for audio / fax
Data interfaces 4 x Ethernet
WLAN 802.11b with extended standard connector
Ingress protection Terminal : IP 54
Antenna : IP 56

* Depending on location. Inmarsat supports ISDN at elevations above 45 degrees.

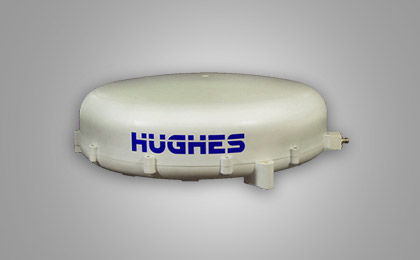

High-performance connectivity on the move for the most demanding environments with the Hughes 9350. Offers Standard IP at up to 492kbps, supports circuit-switched voice or 64kbps ISDN data calls, and includes interfaces for Ethernet and WLAN.Ideal for those users who need reliable, high-speed connectivity on the move, such as corporate disaster planners, first responders and public safety workers, remote field personnel, mobile healthcare technicians, and reporters.

Manufacturer Hughes Network Systems
Size

Terminal
Height : 26.0cm
Width : 25.6cm
Weight : 2.8kg

Antenna
Height : 47.7cm
Width : 15.3cm
Weight : 5.5kg

Standard IP Up to 492kbps (send & receive)
Streaming IP 32, 64, 128, 256kbps (send & receive)*
ISDN 64/56kbps**
Voice Via RJ-45 ISDN handset
Via ISDN TA with two RJ-11
Ports for voice or 3.1kHz for audio or fax
Data interfaces Ethernet
WLAN 802.11b with extended standard connector
USB
Ingress protection IP 54 terminal
IP 56 antenna

* Inmarsat supports 256kbps streaming at elevations above 45 degrees. Below this elevation, the 128kbps streaming connection is recommended.

** Depending on location. Inmarsat supports ISDN at elevations above 20 degrees.

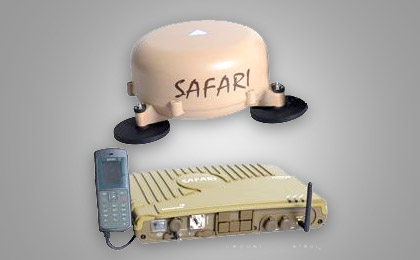

The SAFARI™ is a 'Comms On The Move BGAN terminal and is one of the smallest Land Vehicular BGAN antennas in the market. Offering seamless access to BGAN services up to 464kbps while on the road. The Safari Antenna unit has the highest wind loading rating, when using the standard magnetic mounts, at 210km/h (130mph) The Safari Antenna Unit also has the highest dynamic performance in the market, at 60° per Second Turning Rata (full circle in 6 seconds). The Safari comes standard with Wi-Fi (for connecting to Smart Phones/Tablets etc.) a Full Featured Firewall and Fleet Tracking capability including Geofencing with up to 10 Polygons. The Safari provides simultaneous access to voice, high-speed data with email, fax and SMS. It is compactly designed, easy to install and offers data speeds of up to 448kbps.

Manufacturer Addvalue Communications Pte Ltd
Size

Transceiver unit
Height : 34.0cm
Width : 25.3cm
Depth : 6.15cm
Weight : 3.5kg

Handset
Height : 14.2cm
Width : 5.6cm
Depth : 2.2cm
Weight : 0.39g

Standard IP Up to 448 / 464kbps (send & receive)
Streaming IP 8, 16, 32, 64, 128kbps
ISDN N/A
Voice 4kbps, 3.1 kHz audio
Fax Group 3 fax via 3.1kHz audio
Interfaces RJ-11 (2)
RJ-45 (4)
Ethernet (2 x PoE)
RF connector
DC power input
NMEA-0183 - GPS output
Wi-Fi
Operational temp Antenna unit: -25 °C to +55 °C
Transceiver unit: -25 °C to +55 °C

A compact land-vehicular terminal designed to support a variety of BGAN services, including Standard IP packet data, Streaming IP, ISDN 3.1kHz audio or fax and secured voice, and low-rate AMBE telephony circuit-switched voice services.

Manufacturer Glocom
Size

Terminal
Height : 26cm
Width : 21cm
Weight : 2.4kg

Antenna
Height : 27.6cm
Width : 15.0cm
Weight : 1.86kg

Standard IP Up to 407kbps (send & receive)
Streaming IP 32, 64, 128kbps
ISDN 64 / 56kbps*
Voice Via RJ-45 ISDN handset
Via ISDN TA with two RJ-11
Ports for voice or 3.1kHz for audio / fax
Data interfaces Ethernet
WLAN 802.11b with extended standard connector
USB
Ingress protection Terminal : IP 54
Antenna : IP 56

* Depending on location. Inmarsat supports ISDN at elevations above 20 degrees.

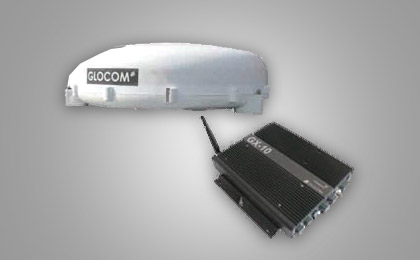

A Class 10 land-vehicular terminal designed to support a variety of BGAN services, including Standard IP packet data, Streaming IP, ISDN UDI, 3.1kHz audio or fax and secured voice, and low-rate AMBE telephony circuit-switched voice.

Manufacturer Glocom
Size

Terminal
Height : 26cm
Width : 25.6cm
Weight : 2.8kg

Antenna
Height : 47.7cm
Width : 15.3cm
Weight : 5.5kg

Standard IP Up to 492kbps (send & receive)
Streaming IP 32, 64, 128, 256kbps (send & receive)*
ISDN 64 / 56kbps**
Voice Via RJ-45 ISDN handset
Via ISDN TA with two RJ-11
Ports for voice or 3.1kHz for audio / fax
Data interfaces Ethernet
WLAN 802.11b
USB
Ingress protection Terminal : IP 54
Antenna : IP 56

* Inmarsat supports 256kbps streaming at elevations above 45 degrees. Below this elevation, the 128kbps streaming connection is recommended.

** Depending on location. Inmarsat supports ISDN at elevations above 20 degrees.

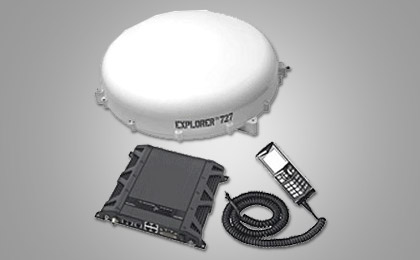

Thrane & Thrane's second-generation BGAN vehicular terminal, comprising a robust, compact, roof-mounted antenna, which constantly tracks the satellite while on the move, and a transceiver which is positioned inside the vehicle. It boasts multiple voice and data interfaces, including ISDN for legacy applications and four Ethernet ports for multiple users. It has been designed to provide optimal broadband on the move for military, civil government, media and other commercial sector organisations.

Manufacturer Thrane & Thrane
Size

Terminal
Height : 26.5cm
Width : 27.3cm
Depth : 4.3cm
Weight : 2.5kg

Antenna
Height : 47.7cm
Width : 15.2cm
Weight : 6kg

Standard IP Up to 492kbps (send & receive)
Streaming IP 32, 64, 128, 256kbps (send & receive) *
ISDN 64/56kbps **
Voice 2 x 2-wire, RJ-11 phone/fax, 3.1kHz audio
Data interfaces 4 x Ethernet, 1 x ISDN (RJ-45)
Ingress protection Terminal : IP 31
Antenna : IP 56

* Inmarsat supports 256kbps streaming at elevations above 45 degrees. Below this elevation, the 128kbps streaming connection is recommended.

** Depending on location. Inmarsat supports ISDN at elevations above 15 degrees.

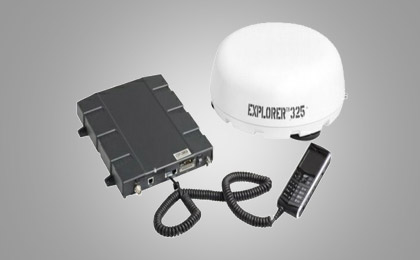

A compact BGAN system for on-the-move communication. The Explorer 325 system consists of three fully integrated units - a transceiver, an IP handset and a roof mountable antenna with magnetic mount. Reliable and easy to deploy for humanitarian operations, cargo transportation, broadcasting or telemedicine regardless of time or place.

Manufacturer Thrane & Thrane
Size

Terminal
Height : 23.1cm
Width : 27.8cm
Weight : 2.4kg

Antenna
Height : 35cm
Width : 120cm
Weight : 4.5kg

Standard IP Up to 448 / 464kbps (send & receive)
Streaming IP 32, 64, 128kbps
ISDN N/A
Voice VoIP handset
1 Independent RJ-11 port (2-wire connector)
Data interfaces 2 x Ethernet
Ingress protection Terminal : IP 31
Antenna : IP 56
